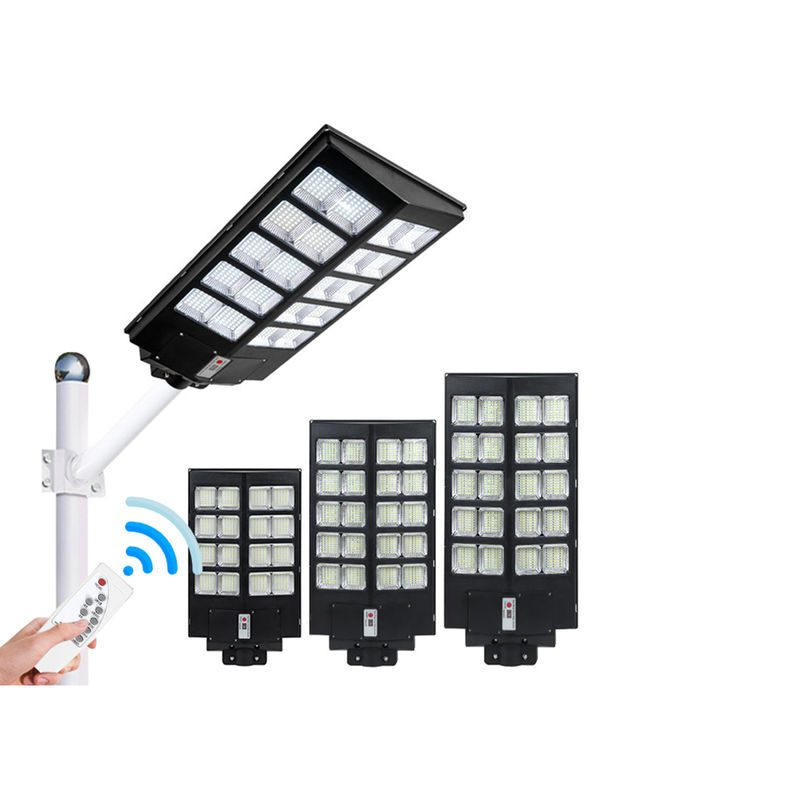

Motion Sensor Streetlight ABS Waterproof IP65 100w 300w Integrated Outdoor Solar Street Light

Motion Sensor Streetlight ABS Waterproof IP65 100w 300w Integrated Outdoor Solar Street Light

Place of Origin:

Zhengzhou,china

Brand Name:

Global Sunrise Lights

Certification:

CE,ROHS

Model Number:

Solar Street Light

Contact Us

Request A Quote
Product Details
Product Name:
Solar Street Light
Color Temperature(CCT):
6000K (Daylight Alert)
Lifespan (hours):
50000
Power:
100/300/500W
Material:
ABS+PC
Battery:
LiFePo4 Battery 3.2V/30AH
Charging Time:
4-6h
LED Light Source:
SMD 5730 800pcs 1w/pcs
Product Description

Motion Sensor Streetlight ABS Waterproof IP65 100w 300w Integrated Outdoor Solar Street Light



Theory of the solar street light:

1. Description of working principle of solar street lamp: under the control of intelligent controller, the solar panel absorbs solar light and converts it into electric energy after being irradiated by solar light during the day. The solar cell module charges the battery pack during the day, and the battery pack provides power to the LED light source at night to realize the lighting function.

2. The DC controller can ensure that the battery pack will not be damaged due to overcharge or over discharge. At the same time, it has the functions of optical control, time control, temperature compensation, lightning protection, reverse polarity protection and so on.



Product Introduction solar panel for street light:

Product name Solar Street Light
Color Temperature(CCT) 6000K (Daylight Alert)
IP Rating IP65
CRI (Ra>) 80
Beam Angle(°) 120
Warranty(Year) 1-Year
Working Temperature(℃) -20 - 60
Light Source LED
Power Supply Solar
Lifespan (hours) 50000
Power 100/300/500W
Color Black
Material ABS+PC
Solar panel Polycrystalline Silicon
IP Grade IP65 Wateproof
Battery LiFePo4 battery 3.2V/30AH
LED Light Source SMD 5730 800pcs 1w/pcs
Charging time 4-6h



Advantage/Selling points:

Solar street lamps are powered by crystalline silicon solar cells. Maintenance free valve controlled sealed batteries (colloidal batteries) store electric energy. Ultra bright LED lamps are used as light sources and controlled by intelligent charge and discharge controllers to replace traditional public electric lighting. No cable laying, no AC power supply and no electricity charge; DC power supply and control; The utility model has the advantages of good stability, long service life, high luminous efficiency, simple installation and maintenance, high safety performance, energy conservation, environmental protection, economy and practicality. It can be widely used in urban main and secondary trunk roads, communities, factories, tourist attractions, parking lots and other places.



Attention:

1. Energy saving. It uses natural light source, does not need to consume electric energy, and is inexhaustible. Making full use of solar energy resources is of positive significance to alleviate the shortage of conventional energy.

2. Environmental protection. Meet the requirements of green environmental protection, no pollution, no radiation and protect the ecology.

3. Safety. Because the product is not suitable for alternating current, and uses the battery to absorb Tao Yang. It is the safest power supply by converting direct current into light energy.



Characteristics:

Power 100W 300W 500W
Solar Panel Polycrystalline sillicon 6V 16W 360*335mm Polycrystalline sillicon 6V 25W 510*335mm Polycrystalline sillicon 6V 30W 590*335mm
Storage Battery LiFePo4 battery 32650 3.2V/12AH LiFePo4 battery 32650 3.2V/18AH LiFePo4 battery 32650 3.2V/24000MAH
Light Source SMD 5730 600pcs 0.5w/pcs SMD 5730 800pcs 0.5w/pcs SMD 5730 1000pcs 0.5w/pcs
Lumen 800LM 1200LM 1600LM
Color Temperature 6500K 6500K 6500K
