12PCS SMD LED 3W 4W 5W Indoor Solar Lighting Kit With 4Ah Lead Acid Batttery

12PCS SMD LED 3W 4W 5W Indoor Solar Lighting Kit With 4Ah Lead Acid Batttery

5W Indoor Solar Lighting Kit

4W indoor solar lighting kit

12PCS SMD led solar light kit

Place of Origin:

china

Contact Us

Request A Quote
Product Details
Model NO.:
SRE-15N
LED Qty:
12PCS SMD
Lamp:
3PCS Solar Lamp
Warranty:
1 Year
Trademark:
Sunrise
Transport Package:
Cartons
Origin:
Zhongshan, China
HS Code:
940540900
Port:
Shenzhen, China
Condition:
New
Certification:
ISO, CB, CE
Application:
Home, Industrial, Commercial
Specification:
Mini, CE ROHS
Solar Panel:
3W
Solar Charging:
6-8 Hours
Product Description

2018 Solar Panel Generator Light solar indoor light do it yourself solar kit 3W 4W 5W Solar Light+3PCS Solar Lamp



Introduction
1, The solar lantern(camping light)mainly use solar and energy-saving LED of technology, delicate appearance, using convenient and simple operation, and built-in lead-acid battery, can use sunlight charging. At the same time also can choose the AC adapter, when no sunlight can be used to charging.
2, The product is equipped with status indication, USB adapter for charging the mobile phone, multi-position lighting choose, etc. It suitable for home lighting, outdoor camping, yurts, tents and other outdoor and indoor lighting, drivers drive, more safety, high efficiency, energy saving, environmental protection.

Parameters

Product name solar home lighting system
Model SRE-0509
Solar panel power 5W/9V with 5meter cable
battery capacity 4Ah lead acid batttery
Led bulb 3W/6V*3PCS with 3M switch cable
working time 4 hours
charging time 6 hours
Accessory 1*10type mobile phone charger

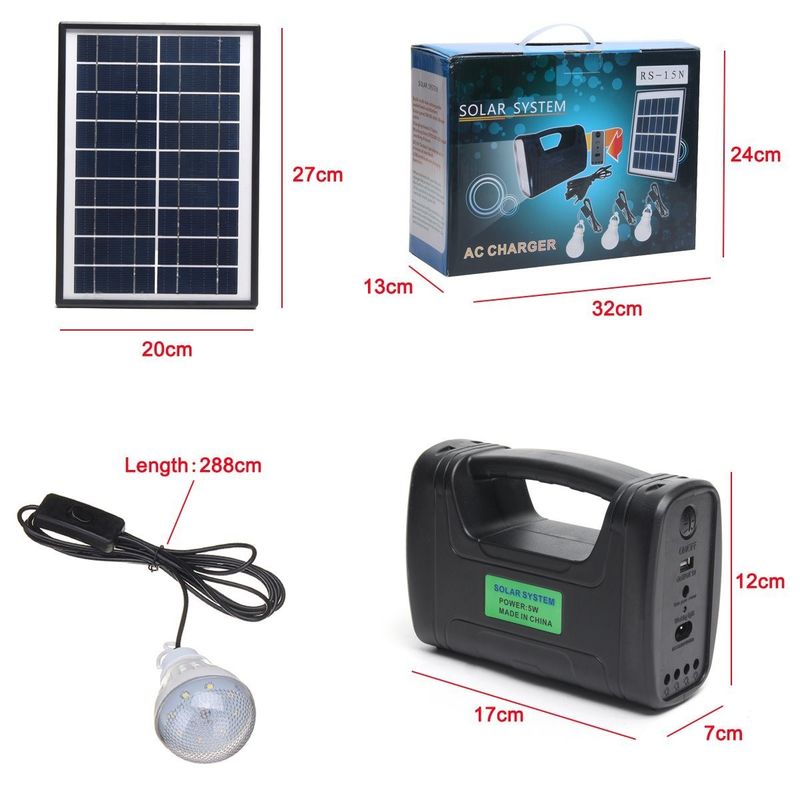

packing size 51.3*51*33.5CM


Attention
1, Please read the instruction before use.
2, Long time no use , please turn off the power.
3, Charging more than 10 hours every3 months.
4, Don't use other adapter and solar panel charger this product.
5, Don't open the panel and battery.
6, Light stay away from water, combustible gas and etchant.
7, The temperature keep between 0ºC-40ºC.

Instruction

  1. Please full charge battery first using. (When charging the red light flashing , after fully charged battery indicator light change green and continuous on)The brightness have four levels: 50% brightness, 75% brightness 100% brightness 25% brightness.Through the standard USB cable can be directly connected to the 5v output charge for mobile phone, game consoles, digital cameras, MP4 and other small capacity equipment.Plug the standard LED bulb into DC1 ~ DC4 any hole, then switch on bulb.



Operation

  1. If use solar panel charging, first insert the solar panel into the DC charger,put solar panels on enough sunny places, pay attention to not have anything blocking solar panels.Using AC charging, put the adapter DC into solar light DC charger,then connect the charger with 220 VAC.

Fault
1, Don't charger battery but the red light flash mean the battery voltage too low, it need connect the solar panel or adapter to charge, when full charger it will eliminated this fault.
2, The red light is not flash and green light is not bright when charging, you can check DC plug whether connected, panel whether have enough sunlight.



Solar Panel Generator Light Solar Indoor Light Do It Yourself Solar Kit 3W 4W 5W Solar Light+3PCS Solar Lamp
Solar Panel Generator Light Solar Indoor Light Do It Yourself Solar Kit 3W 4W 5W Solar Light+3PCS Solar Lamp
Solar Panel Generator Light Solar Indoor Light Do It Yourself Solar Kit 3W 4W 5W Solar Light+3PCS Solar Lamp
Solar Panel Generator Light Solar Indoor Light Do It Yourself Solar Kit 3W 4W 5W Solar Light+3PCS Solar Lamp

Off-grid solar light kit with mobile charger 3w 4w 5w solar power system with 3pcs solar lamp

Features:

1. Update patented solar lighting system is a completely independent off-grid power pack that can add illumination to needed areas,or use the outlet 5V2A to quickly charge cellphone and digital devices.

2. It is perfect choice for camping,fishing,farming or anyplace without electrical supply.

3. It is also a complementary lighting for emergency and indoor.

4. The Controller box has a rechargerable lithium battery inside,the indicator light on the box shows the amount of power stored,Green light means close to full power ,

5. Flickering red light means few or very few power left,Two separeate Switches

6. control the ON/OFF for respective LED bulb.



Solar Panel Generator Light Solar Indoor Light Do It Yourself Solar Kit 3W 4W 5W Solar Light+3PCS Solar Lamp
